HF Fixed X-Ray
| ERAY RAD SERIES | |||||
| MODEL | ERAY RAD 200S | ERAY RAD 250S | ERAY RAD 300S | ERAY RAD 500S | ERAY RAD 630S |
| POWER OUTPUT | 10kW | 20kW | 32kW | 40kW | 50kW |
| X-RAY GENERATOR & TUBE |
| TYPE | HF Generator |
| TIME RANGE | 40kV-125kV |
| kV RANGE | 40 kV-125kV | 40 kV-125kV | 40 kV-125kV | 40 kV-150kV | |
| mA RANGE | 10 mA -200mA | 10 mA -250mA | 10mA- 300mA | 10 mA -500mA | 10 mA -630mA |
| ANODE TYPE | Stationary |
| HEAT CAPACITY | 140 kHU | 140 kHU | 140 kHU | 140 kHU | 200 kHU |

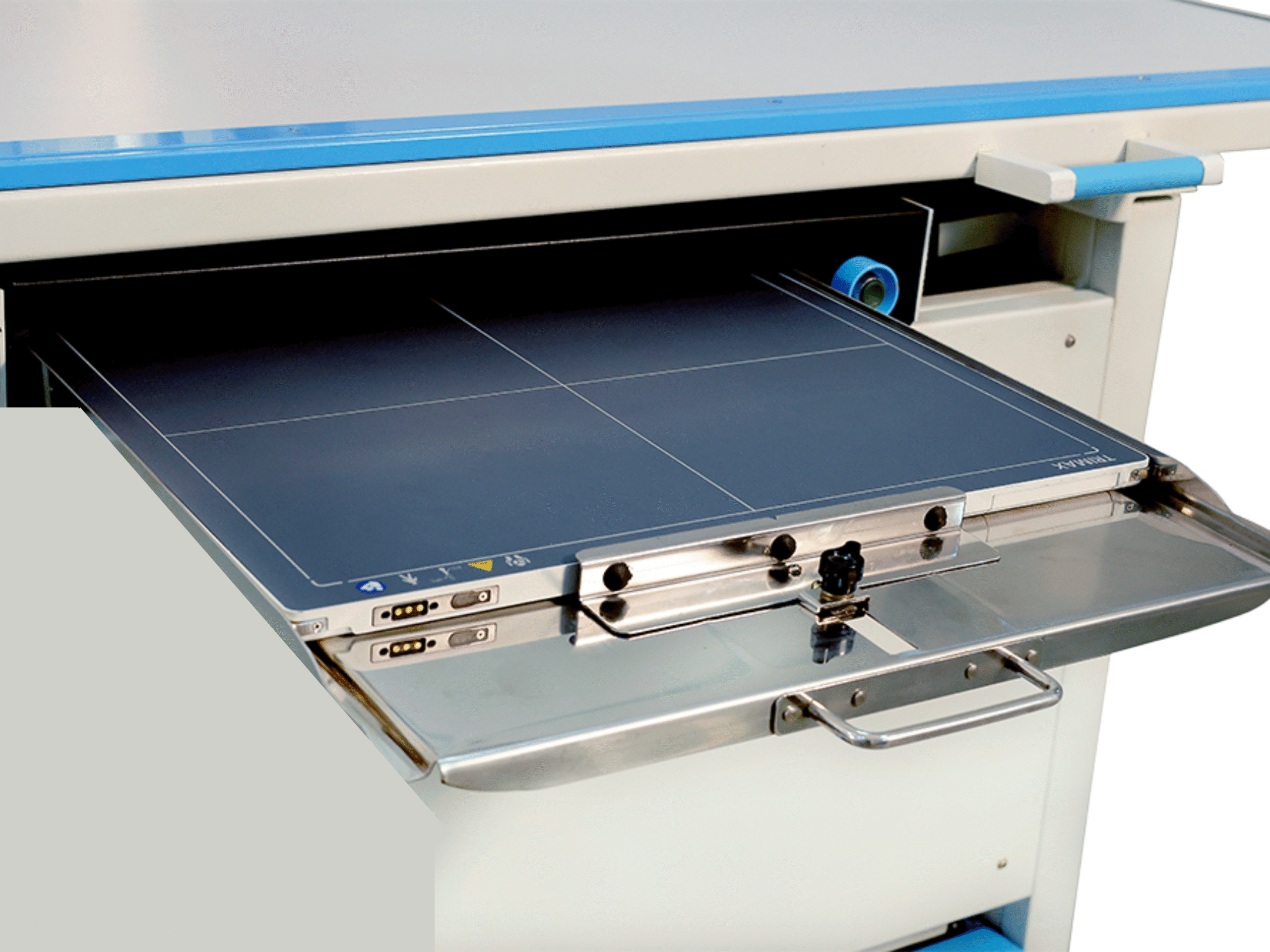

| DETECTOR | |
| DETECTOR SIZE | 14″x17″ / 17″x17″ |
| PIXEL SIZE | 140um |
| SCINTILLATOR | CsI / GOS |
| Gray Scale | 16 bit |
| WEIGHT | 2.7kg/ 3.2 kg |
| IP RATING | IP56 |
| IMAGE STORAGE | Upto 200 images |
| TABLET | |
| TYPE | Touch Screen Tablet Console |
| PROCESSOR | Intel |
| STORAGE | 128GB |
| OPERATING SOFTWARE | Windows |
| SIZE | 10 inch |
